Brand Name: Sinotruk Howo Dump Truck
Vehicle use: Tipper,Dump Truck
Model Number: ZZ3257N3647A
Price: FOB 35000-38000 USD Per Unit
Drive Type: 8x4
Place of origin: in china
Brand Name: Sinotruk Howo Dump Truck
Vehicle use: Tipper,Dump Truck
Model Number: ZZ3257N3647A
Price: FOB 35000-38000 USD Per Unit
Drive Type: 8x4
Place of origin: in china
Features and Advantages of Sinotruck Howo Dump Truck.
The features and advantages of Sinotruck’s dump trucks mainly include the following:
Technological innovation and patented technologies: Sinotruck Howo Dump Truck possess independent intellectual property rights and have obtained 13 patented technologies covering the entire vehicle and key structures, which have led to significant improvements in safety, efficiency and durability of the vehicles1.
Safety Performance: Sinotruck Howo Dump Truck excel in safety. For example, the push-type tipper truck achieves safe unloading of the vehicle within the range of safe side tipping angle, and the safety coefficient of unloading stability reaches 100%. In addition, the special propulsion system effectively avoids accidents caused by accidental lifting of the truck box in the procesConfiguration of Sinotruk Howo dump trucks of travelling due to driver’s misoperation, and improves driving safety1.
Multiple unloading methods: Sinotruck Howo Dump Truck provide multiple unloading methods to meet the needs of different working conditions. For example, height-restricted unloading is suitable for use under low buildings or height-restricted conditions such as tunnels; fixed-point and fixed-quantity unloading can be used in conjunction with municipal paving equipment; horizontal bi-directional paving unloading improves work efficiency in road construction; and hanging-wall unloading is suitable for open-pit mining areas and other conditions where the road base is relatively soft1.
Lightweight and High Efficiency: By eliminating the sub-frame and adopting high-strength wear-resistant plates, Sinotruck’s Howo dump truck have achieved lightweighting and reduced the height of the vehicle’s centre of gravity. The special propulsion system extends the service life of the hydraulic system, reduces the system maintenance cost and improves the efficiency of the vehicle1.
Durability and adaptability: The China National Heavy Duty Truck (cnhtc) Sinotruck Howo Dump Truck adopts robots to automatically weld and reinforce the longitudinal and transverse beams of the trunk, which improves the strength and stability of the structure. The outer surface is treated with powder spraying process to effectively resist the erosion of corrosive substances. The connecting plate of the trunk adopts multi-section bending deflector design, which optimises the deflector performance and impact resistance to ensure that the vehicle can still maintain excellent performance under adverse working conditions23.
Market Performance and User Feedback: Sinotruck Howo Dump Truck have performed well in the market, especially against the background of increased investment in infrastructure construction, and its Howhan series and Howo series dump trucks have been well received by users. For example, with its lightweight design and high-end power configuration, the Howan N6G 8×4 dump truck has won a large number of orders.
To sum up, Sinotruck Howo Dump Truck have performed well in the market and are favoured by users due to their advantages in technical innovation, safety performance, multiple unloading methods, lightweight design, durability and adaptability.
Sinotruk Howo Dump Truck 8X4
Sino truck price in ethiopia
Howo tipper truck price in nigeria
The new generation of push-type dump trucks of SINOTRUK breaks the traditional design concept of lifting and unloading dump trucks, and realises the function of tipping and unloading goods without lifting the cargo box. The product has multiple advantages such as safety, reliability, stability, speed, light weight, etc. It is widely used in urban construction, road maintenance, grain and coal bulk logistics transfer, port terminals, open-pit mining stripping and other working conditions. The technical level of this product has reached the world’s advanced and leading in China.
It owns independent intellectual property rights and has obtained 13 patented technologies covering the whole vehicle and key structures, which has become a change product of traditional unloading vehicles.
Sinotruk Howo Dump Truck – ZZ3257N3647A

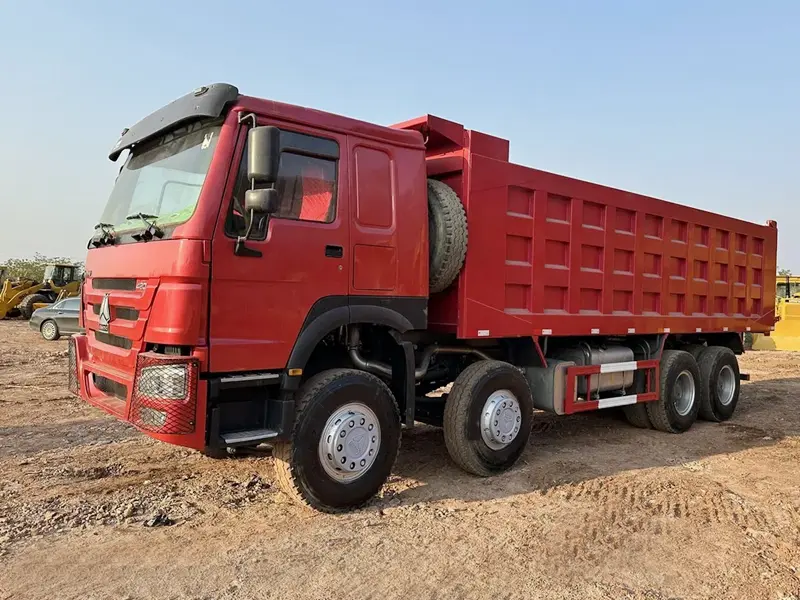

Sinotruk Howo Dump Truck 8×4
Sinotruk Howo Dump Truck
Sinotruk Howo Dump Truck 8×4 – engines
Sinotruk Howo Dump Truck 8×4 – interior
Sinotruk Howo Dump Truck 8×4- detail
1,To achieve safe unloading within the safe side tilt angle of the vehicle, unloading stability and safety coefficient of 100%.
2,Satisfy the unloading requirements under special working conditions.
Height-restricted unloading: Suitable for automatic unloading under low buildings or tunnels and other height-restricted conditions.
Fixed-point and fixed-quantity unloading: it can be used synchronously with municipal paving equipment.
Horizontal bi-directional paving unloading: can improve the working efficiency in road construction.
Suspended wall unloading: more suitable for ‘stacking’ type unloading in open-pit mining area or reclamation work and other soft roadbed conditions.
3,Realise zero residue unloading in the trunk.
For transporting sticky materials, no need to empty manually.
4,Fast unloading speed
Compared with the traditional long wheelbase dump truck, the unloading efficiency is increased by 30%.
5,Cancel sub-frame and adopt high strength wear-resistant plate.
The height of the centre of gravity of the whole vehicle is lowered, realizing the light weight of the whole vehicle.
6,Special propulsion system prolongs the service life of the hydraulic system, avoids the damage of the hydraulic system caused by the deflection of the vehicle box in lifting, and reduces the maintenance cost of the system.
7,Improve driving safety:
the special propulsion system can effectively avoid accidents caused by accidental lifting of the trunk in the process of driving due to driver’s misoperation.
Sinotruk Howo Dump Truck main transport medium: 1, clay 2, sand, coal 3, stone 4, construction waste
Sinotruk Howo Dump Truck, with its cutting-edge design concept and hardcore strength, has shockingly landed in the dump truck market, opening up a new journey of efficient transport.
Sinotruk Howo Dump Truck, with cutting-edge design concepts and hardcore strength, has shockingly landed in the dump truck market, opening up a new journey of efficient transport. The Sinotruk Howo Dump Truck integrates a number of cutting-edge technological achievements, achieving a qualitative leap in durability and safety, and improving the efficiency and quality of transport operations in all aspects. At present, the competition in the global market is intensifying, and with its outstanding stability, reliability and long life cycle, Howo Dump Truck can easily cross the ruggedness and steadily overcome the difficulties, which help users seize the first opportunity in the market, and win a thousand miles in the journey of wealth creation!
howo sinotruk 371 price: US$17,800.00-19,200.00
howo 6×4 dump truck price: US$18,800.00-19,200.00
howo truck price in china: US$18,800.00-19,200.00
Sinotruk Howo – Quality Escort Fearless Way Forward
China National Heavy Duty Truck (CNHTC) Sinotruk Howo Dump Truck is a perfect fusion of exquisite craftsmanship and resolute strength. The longitudinal and transverse beams of the trunk are fully welded and reinforced by robots, which greatly improves the strength and stability of the structure; the outer surface is treated with powder spraying process, forming an impenetrable protective barrier, which can effectively resist the erosion of salt spray, acid and alkali and other corrosives in the sea transport and harsh environment, and shows superb durability performance.
In addition, the trunk joint plate adopts a multi-stage bending deflector design, which greatly optimises the deflector performance and impact resistance, and ensures that the vehicle still maintains excellent performance under adverse working conditions. The locking, lateral stabilisation and lateral stabilisation devices are added between the trunk and sub-frame, which greatly enhance the stability, safety and comfort of the vehicle during driving and loading/unloading of goods, and provide solid support for the efficient operation and safety of the vehicle. China National Heavy Duty Truck Corporation (CNHTC) Sinotruk Howo Dump Truck, fearless of heavy challenges, constantly transcend themselves and escort the road ahead with hardcore strength.
|
Truck Model |
ZZ3257N3647A, Left Hand Drive or Right Hand Drive model |
|
|
Manufacturer |
SINOTRUK company |
|
|
Truck Brand |
SINOTRUK -HOWO |
|
|
Dimension(Lx W xH) |
8545*2496*3386mm |
|
|
Cargo body size (L*W*H, mm) |
5800*2300*1400 |
|
|
Cargo body thickness(mm) |
bottom:8mm, side:6mm, or customized as you required |
|
|
Lift type of Carriage |
Ventral lifting or front tipping |
|
|
Approaching angle/Departure angle(°) |
19/26 |
|
|
Overhang(front/rear) (mm) |
1500/1739 |
|
|
Wheel base (mm) |
3625+1350 |
|
|
Max speed(km/h) |
75 |
|
|
Curb weight(kg) |
12290 |
|
|
Loading Weight(kg) |
25000 |
|
|
Fuel Tanker |
300L with locking fuel cap |
|
|
Fuel consumption(L/100km) |
32 |
|
|
Clutch |
Single-plate dry clutch Φ430mm |
|
|
Engine |
Model |
WD615.47,4- stroke direct injection diesel engine, 6 cylinders in line with water cooling , |
|
Horse Power, |
371HP |
|
|
Emission Standard |
EURO II |
|
|
Transmission |
Model |
HW 19710,10 forwards and 2 reverse |
|
Brake system |
Service brake |
Dual circuit compressed air brake |
|
Parking brake |
spring energy, compressed air operating on rear wheels |
|
|
Auxiliary brake |
Engine exhaust brake |
|
|
Steering system |
Model |
ZF8098/ZF8118 hydraulic steering with power assistance |
|
Front axle |
HF9 |
|
|
Rear axle |
HC16 |
|
|
Tire |
12.00R20, 12.00-20 |
|
|
Electrical system |
Operating voltage |
24V,negative grounded |
|
Starter |
24V,7.35KW |
|
|
Alternator |
28V,1500W |
|
|
Batteries |
2*12V.165Ah |
|
|
Tips to build your Sinotruk Howo Dump Truck body |
||
|
Transport medium |
Floor(mm) |
Side(mm) |
|
Soil or Stone |
8 |
4 |
|
Construction Waste |
10 |
6 |
|
Big Ore |
12 |
8 |
|
Coal |
6 |
4 |
|
clay |
8 |
4 |
|
Grain or Chemical fertilizer |
6 |
4 |

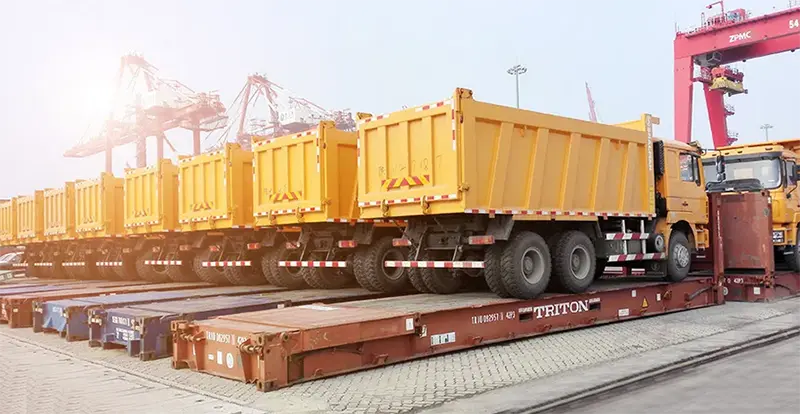

Brand new HOWO dump trucks in our warehouse, waiting for delivery. In order to protect our trucks from the sea water and rain, we painted wax, so color looks not so bright.
howo 8×4 dump truck price
howo 336 tipper truck price
sino dump truck price
howo 8×4 dump truck price
sinotruk howo a7 dump truck
sinotruk howo t7h dump truck
The design of Sinotruk Howo Dump Truck meets users’ individual demands in depth, and optimises the position of the centre of gravity to further enhance the vehicle’s driving stability, while the scientific and reasonable distribution of the tyre loading capacity effectively prolongs the service life of the tyres. The optional exhaust gas heating system in the cold zone of this model has also been fully upgraded, and the four-channel structure at the bottom of the system greatly enhances the circulation efficiency of the channel and ensures that the engine is free from backpressure; the upper part of the system is cleverly designed for exhausting smoke, which doesn’t affect the driving line of sight at all, and the lower part is equipped with a water drainage function, which effectively avoids the accumulation of water inside the heating pipeline and the corrosion and other problems.
In addition, the assembled trunk flip support has been optimised and upgraded in terms of strength, which not only further strengthens the durability of the whole vehicle, but also makes it easy to dismantle and install, which greatly improves the convenience of maintenance of the upper part and the potential demand of users for replacement of the upper part under the long lifecycle of the whole vehicle.
The dump truck of sinotruk company rides on the road with fearlessness, and its excellent characteristics of durability, safety and high efficiency are the vivid interpretation of sinotruk company’s pursuit of the ultimate quality of its products. The careful design and scientific optimisation of every detail are the result of sinotruk company’s deep understanding of users’ needs and courageous exploration of extreme performance, which demonstrates its profound heritage and forward-looking vision in the field of heavy-duty vehicle research and development, and leads the future means of transport to move forward in the direction of greater efficiency, safety and reliability.
China’s sole national heavy duty truck engineering & technology research center;
National level enterprise R&D center;
National first class science and research unit;
National heavy truck quality supervision and testing center;
Make and research national heavy truck industry standards;
State designated commercial vehicle testing organization;
Design, R&D and application for full series of commercial vehicle;
Design and R&D of key assemblies and parts;
Complete vehicle computer simulating calculation;
Electronic control design and R&D for commercial vehicle;
Optimization of production process;
Development and maintenance for enterprise information system;
Achievements of R&D;
A technology R&D system built by sinotruk company covering the whole group taking R&D Center as dominant and matching with manufacturing business divisions undertakes the key national R&D projects, and cooperate and communicate with top research and academic institutes in the world.
It has become the important sinotruk company R&D base and technical supporting institute for Product R&D, Experiment& Research and Quality Inspection of China’s heavy duty truck industry;
Involved in drafting 39 national and industrial standards;
Possessing 1917 national patents;
Obtaining the honor of Top 10 Outstanding Innovative Enterprise in China；
Obtaining National Award for Science and Technology Progress;
Obtaining China Automobile Industry Science and Technology Progress Award；
Overall testing guarantees every vehicle is a competitive product. sinotruk company owns professional road testing grounds for heavy trucks, so every new developed product will be tested by extremely strict professional experiments during development process.
Sinotruk Howo Parts az9725160100
Sinotruk Howo Parts Shaft seal ring-wg9003074387
Sinotruk Howo 371 Parts Engine WD615.47 WD615.47
Sinotruk Howo Parts Bridge bearing assembly az9319313274
Sinotruk Howo Parts Starter VG1246090002
Sinotruk Howo Parts VG1047010038
Sinotruk Howo Parts WG9725190102
Sinotruk Howo Parts VG61000070005
Q1: I don’t want this configuration.
A: The configuration can be changed according to your needs
Q2: Minimum order quantity?
A: MOQ is 1 unit.
Q 3: Production period?
A: (Truck & trailer) Within 30 days since the moment we got your down payment
(Parts) Within 7 days since the moment we got your down payment
Q 4: Payment term?
A: (Truck & trailer) 30% T/T as deposit, the balance should be paid before delivery. or L/C
(Parts) 100% T/T should be paid before delivery
Q 5: Shipping?
A: (Truck & trailer)
by container or RoRo/Bulk shipment. (South America, Middle East, Africa, Oceania etc.)
by road or railway.(Russia, Mongolia, Kazakhstan, Uzbekistan , Vietnam, Laos etc.)
(Parts)
by international courier service, such as DHL, TNT, UPS, or Fedex. The goods above $1000 can be shipped by sea
Q 6: Can you supply some quick-wear truck or semi trailer parts ?
A: Yes, we can supply Sinotruk Howo Dump Truck and semi trailer parts as your request,such as oil filter, fuel filter, air filter, traction, traction pin, balance beam and semi-trailer plate spring, hanging accessories, turntable, all kinds of trailer brake pads, brake pan, bearings etc.
